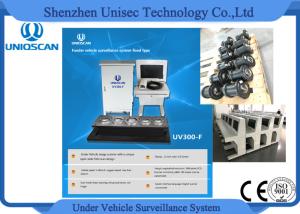

Under Vehicle Inspection System CCD scanning technology Dynamic imaging
Software:
1,using black and white Array CCD scanning technology Dynamic imaging；
2,Scanning Image resolution: ≥ 2048
3,Store or load time: <1 second;
4,Vehicle image display mode: large format transverse;
5,System interface language: English (can be customized);
6,Display resolution: adapt to a variety of display resolution;
7,Vehicle image data transfer interface: NetworkRJ45
8,Scene image display: ≥1 channel
9,Dedicated image processing functions
10,License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )
Computer:
1,Display: 22 inch LCD Screen
2,CPU: INTEL Quad-Core Processor
3,Motherboard : dedicated motherboard
4,Memory : DDR3 , more than 2GB
5,Hard disk : 500G high-speed hard disk
6,Working voltage : AC220V 50/60Hz
7,Data transmission cable length : 10m (standard)
Vehicle image system, control equipment and environmental adaptability:
1,Scan mode: automatic , non- external trigger scanning;
2,The maximum scan rate:18kHz；
3,Vehicle speed:≤30km/h；Loading weight: 30 Tons
4,View angle:180 degrees
5,Scanner connecting cable: 10 meters (can be customized more than 10m)
6,Lighting components : Two single sealed LED surface light source ; Life : 50,000h
7,Under Vehicle image scanner with a unique open-wide field scan design;
8,Working voltage: DC24V
9,Power Supply:AC220V/50-60Hz
10,Structure design:single sealed design；
11,Environment temperature: -20 degrees - +55 degrees
12,Appearance: Aluminum copper alloy composite material
Current(Monitor mode) 400MA
Current(Video mode) 500MA
AC Adapter DC 12V 1A
Built-in Battery Li-battery 5000Mah
Wireless record time ≥10hours
Dimension: 177mm x120mm x 20mm
Weight 350 g
CERTIFICATION
EXHIBITION
