6 Zones 99 Sensitivity Level Security Walk Through Gate Metal Detector With CCTV Camera And DVR
Parameters :
| Model Number: | UB500+CCTV+DVR |
| Vertical dimension: | 229cm(High) x 56cm (Wide) x 19cm (Deep) |
| Vertical channel size: | 2000x700mm |
| Detection door packing size: | 229cm (High) x 56cm (Wide) x 19cm (Deep) |
| Net weight of main box/detection door: | 60KG |
| Gross weight of main box/detection door: | 65kg |
| Working voltage: | 65V~264V 50/60Hz |
| Power consumption: | 20W |
| Working frequency range: | 4-8KHZ |
| Working environment temperature: | -20℃ ~ 55℃ |
| Installation environment: | (W) 100cm* (L) 200cm
(minimum range without metal) |
| Video memory storage: | 128G |
| Camera: | High resolution cctv camera |
Characteristic & Function
1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy,
recording tapes,etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.4-8 hours backup battery (Option).
15.Video memory storage is 128G
16.Both front and rear with high resolution cctv camera.
17.1 years warranty with free parts.
Applications:
- Airports
- Correctional Facilities
- Public Buildings
- Private Buildings
- Schools
- Special Events
- Loss Prevention
- Nuclear Facilities
- Transportation Terminals
- Courthouses
- Corporate Security
- Historical Landmarks
We has been supplying quality products worldwide for over 40 countries, 10 years, with wide product line consists of 4 groups, includes:
- X-Ray Baggage Scanner
- Walk Through Metal Detector
- Hand Held Metal Detector
- Under Vehicle Inspection System

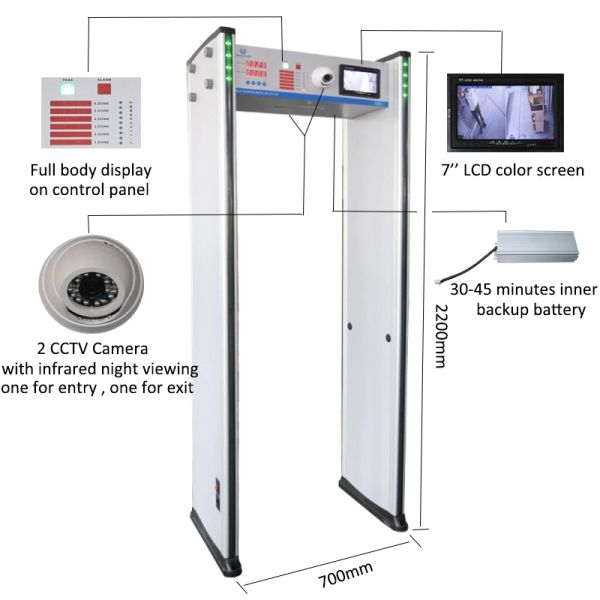

Detail Photo :
Company Profile :
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
We owns all of the intellectual property rights(IPR) to its core technologies,and have a experience engineer,sales and service team. Products widely used in airport, railway station, bus station, electronic factory, exhibition, government office, jail, court house...etc. Wins a good reputation from end users from China and overseas.
We strictly in accordance with the ISO9001 quality standard requirements from production research, manufacture, marketing to after services, established a complete quality management and assurance system, to ensure all our clients have our best quality products and best services.
Certiification :
